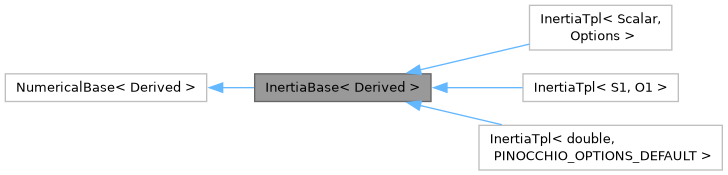

Inheritance diagram for InertiaBase< Derived >:

Collaboration diagram for InertiaBase< Derived >:

Public Member Functions
Derived &	const_cast_derived () const
Derived &	derived ()
const Derived &	derived () const
void	disp (std::ostream &os) const
Symmetric3 &	inertia ()
const Symmetric3 &	inertia () const
Matrix6	inverse () const
template<typename Matrix6Like>
void	inverse (const Eigen::MatrixBase< Matrix6Like > &mat) const
bool	isApprox (const Derived &other, const Scalar &prec=Eigen::NumTraits< Scalar >::dummy_precision()) const
bool	isZero (const Scalar &prec=Eigen::NumTraits< Scalar >::dummy_precision()) const
template<typename MotionDerived>
Matrix6	ivx (const MotionDense< MotionDerived > &v) const
Vector3 &	lever ()
const Vector3 &	lever () const
Scalar &	mass ()
Scalar	mass () const
Matrix6	matrix () const
template<typename Matrix6Like>
void	matrix (const Eigen::MatrixBase< Matrix6Like > &mat) const
	operator Matrix6 () const
bool	operator!= (const Derived &other) const
template<typename MotionDerived>
ForceTpl< typename traits< MotionDerived >::Scalar, traits< MotionDerived >::Options >	operator* (const MotionDense< MotionDerived > &v) const
Derived	operator+ (const Derived &Yb) const
Derived &	operator+= (const Derived &Yb)
Derived	operator- (const Derived &Yb) const
Derived &	operator-= (const Derived &Yb)
Derived &	operator= (const Derived &clone)
bool	operator== (const Derived &other) const
template<typename S2, int O2>
Derived	se3Action (const SE3Tpl< S2, O2 > &M) const
	aI = aXb.act(bI)
template<typename S2, int O2>
Derived	se3ActionInverse (const SE3Tpl< S2, O2 > &M) const
	bI = aXb.actInv(aI)
void	setIdentity ()
void	setRandom ()
void	setZero ()
	SPATIAL_TYPEDEF_TEMPLATE (Derived)
template<typename MotionDerived>
Matrix6	variation (const MotionDense< MotionDerived > &v) const
template<typename MotionDerived>
Scalar	vtiv (const MotionDense< MotionDerived > &v) const
template<typename MotionDerived>
Matrix6	vxi (const MotionDense< MotionDerived > &v) const

Static Public Member Functions
template<typename MotionDerived, typename M6>
static void	ivx (const MotionDense< MotionDerived > &v, const Derived &I, const Eigen::MatrixBase< M6 > &Iout)
	Time variation operator. It computes the time derivative of an inertia I corresponding to the formula $\dot{I} = v \times^{*} I$ .
template<typename MotionDerived, typename M6>
static void	vxi (const MotionDense< MotionDerived > &v, const Derived &I, const Eigen::MatrixBase< M6 > &Iout)
	Time variation operator. It computes the time derivative of an inertia I corresponding to the formula $\dot{I} = v \times^{*} I$ .

Friends
std::ostream &	operator<< (std::ostream &os, const InertiaBase< Derived > &X)

Additional Inherited Members
Public Types inherited from NumericalBase< Derived >
typedef traits< Derived >::Scalar	Scalar

Detailed Description

template<class Derived>
struct pinocchio::InertiaBase< Derived >

Definition at line 19 of file inertia.hpp.

Member Function Documentation

◆ const_cast_derived()

template<class Derived>

Derived & const_cast_derived ( ) const

inline

Definition at line 32 of file inertia.hpp.

◆ derived() [1/2]

template<class Derived>

Derived & derived ( )

inline

Definition at line 23 of file inertia.hpp.

◆ derived() [2/2]

template<class Derived>

const Derived & derived ( ) const

inline

Definition at line 27 of file inertia.hpp.

◆ disp()

template<class Derived>

void disp ( std::ostream & os ) const

inline

Definition at line 222 of file inertia.hpp.

◆ inertia() [1/2]

template<class Derived>

Symmetric3 & inertia ( )

inline

Definition at line 57 of file inertia.hpp.

◆ inertia() [2/2]

template<class Derived>

const Symmetric3 & inertia ( ) const

inline

Definition at line 53 of file inertia.hpp.

◆ inverse() [1/2]

template<class Derived>

Matrix6 inverse ( ) const

inline

Definition at line 81 of file inertia.hpp.

◆ inverse() [2/2]

template<class Derived>

template<typename Matrix6Like>

void inverse ( const Eigen::MatrixBase< Matrix6Like > & mat ) const

inline

Definition at line 77 of file inertia.hpp.

◆ isApprox()

template<class Derived>

bool isApprox	(	const Derived &	other,
		const Scalar &	prec = Eigen::NumTraits<Scalar>::dummy_precision() ) const

inline

Definition at line 196 of file inertia.hpp.

◆ isZero()

template<class Derived>

bool isZero ( const Scalar & prec = Eigen::NumTraits<Scalar>::dummy_precision() ) const

inline

Definition at line 203 of file inertia.hpp.

◆ ivx() [1/2]

template<class Derived>

template<typename MotionDerived>

Matrix6 ivx ( const MotionDense< MotionDerived > & v ) const

inline

Definition at line 176 of file inertia.hpp.

◆ ivx() [2/2]

template<class Derived>

template<typename MotionDerived, typename M6>

void ivx	(	const MotionDense< MotionDerived > &	v,
		const Derived &	I,
		const Eigen::MatrixBase< M6 > &	Iout )

inlinestatic

Time variation operator. It computes the time derivative of an inertia I corresponding to the formula $\dot{I} = v \times^{*} I$ .

Parameters

[in]	v	The spatial velocity of the frame supporting the inertia.
[in]	I	The spatial inertia in motion.
[out]	Iout	The time derivative of the inertia I.

Definition at line 169 of file inertia.hpp.

◆ lever() [1/2]

template<class Derived>

Vector3 & lever ( )

inline

Definition at line 49 of file inertia.hpp.

◆ lever() [2/2]

template<class Derived>

const Vector3 & lever ( ) const

inline

Definition at line 45 of file inertia.hpp.

◆ mass() [1/2]

template<class Derived>

Scalar & mass ( )

inline

Definition at line 41 of file inertia.hpp.

◆ mass() [2/2]

template<class Derived>

Scalar mass ( ) const

inline

Definition at line 37 of file inertia.hpp.

◆ matrix() [1/2]

template<class Derived>

Matrix6 matrix ( ) const

inline

Definition at line 67 of file inertia.hpp.

◆ matrix() [2/2]

template<class Derived>

template<typename Matrix6Like>

void matrix ( const Eigen::MatrixBase< Matrix6Like > & mat ) const

inline

Definition at line 63 of file inertia.hpp.

◆ operator Matrix6()

template<class Derived>

operator Matrix6 ( ) const

inline

Definition at line 71 of file inertia.hpp.

◆ operator!=()

template<class Derived>

bool operator!= ( const Derived & other ) const

inline

Definition at line 94 of file inertia.hpp.

◆ operator*()

template<class Derived>

template<typename MotionDerived>

ForceTpl< typename traits< MotionDerived >::Scalar, traits< MotionDerived >::Options > operator* ( const MotionDense< MotionDerived > & v ) const

inline

Definition at line 118 of file inertia.hpp.

◆ operator+()

template<class Derived>

Derived operator+ ( const Derived & Yb ) const

inline

Definition at line 103 of file inertia.hpp.

◆ operator+=()

template<class Derived>

Derived & operator+= ( const Derived & Yb )

inline

Definition at line 99 of file inertia.hpp.

◆ operator-()

template<class Derived>

Derived operator- ( const Derived & Yb ) const

inline

Definition at line 111 of file inertia.hpp.

◆ operator-=()

template<class Derived>

Derived & operator-= ( const Derived & Yb )

inline

Definition at line 107 of file inertia.hpp.

◆ operator=()

template<class Derived>

Derived & operator= ( const Derived & clone )

inline

Definition at line 86 of file inertia.hpp.

◆ operator==()

template<class Derived>

bool operator== ( const Derived & other ) const

inline

Definition at line 90 of file inertia.hpp.

◆ se3Action()

template<class Derived>

template<typename S2, int O2>

Derived se3Action ( const SE3Tpl< S2, O2 > & M ) const

inline

aI = aXb.act(bI)

Definition at line 210 of file inertia.hpp.

◆ se3ActionInverse()

template<class Derived>

template<typename S2, int O2>

Derived se3ActionInverse ( const SE3Tpl< S2, O2 > & M ) const

inline

bI = aXb.actInv(aI)

Definition at line 217 of file inertia.hpp.

◆ setIdentity()

template<class Derived>

void setIdentity ( )

inline

Definition at line 187 of file inertia.hpp.

◆ setRandom()

template<class Derived>

void setRandom ( )

inline

Definition at line 191 of file inertia.hpp.

◆ setZero()

template<class Derived>

void setZero ( )

inline

Definition at line 183 of file inertia.hpp.

◆ variation()

template<class Derived>

template<typename MotionDerived>

Matrix6 variation ( const MotionDense< MotionDerived > & v ) const

inline

Definition at line 130 of file inertia.hpp.

◆ vtiv()

template<class Derived>

template<typename MotionDerived>

Scalar vtiv ( const MotionDense< MotionDerived > & v ) const

inline

Definition at line 124 of file inertia.hpp.

◆ vxi() [1/2]

template<class Derived>

template<typename MotionDerived>

Matrix6 vxi ( const MotionDense< MotionDerived > & v ) const

inline

Definition at line 152 of file inertia.hpp.

◆ vxi() [2/2]

template<class Derived>

template<typename MotionDerived, typename M6>

void vxi	(	const MotionDense< MotionDerived > &	v,
		const Derived &	I,
		const Eigen::MatrixBase< M6 > &	Iout )

inlinestatic

Time variation operator. It computes the time derivative of an inertia I corresponding to the formula $\dot{I} = v \times^{*} I$ .

Parameters

[in]	v	The spatial velocity of the frame supporting the inertia.
[in]	I	The spatial inertia in motion.
[out]	Iout	The time derivative of the inertia I.

Definition at line 145 of file inertia.hpp.

◆ operator<<

template<class Derived>

std::ostream & operator<<	(	std::ostream &	os,
		const InertiaBase< Derived > &	X )

friend

Definition at line 226 of file inertia.hpp.

The documentation for this struct was generated from the following file:

include/pinocchio/spatial/inertia.hpp
