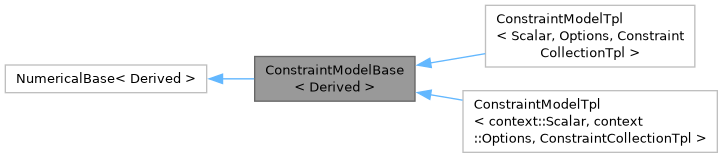

Inheritance diagram for ConstraintModelBase< Derived >:

Collaboration diagram for ConstraintModelBase< Derived >:

Public Types
enum	{ Options = traits<Derived>::Options }
typedef Eigen::Matrix< bool, Eigen::Dynamic, 1, Options >	BooleanVector
typedef traits< Derived >::ConstraintData	ConstraintData
typedef std::vector< Eigen::DenseIndex >	IndexVector
typedef traits< Derived >::Scalar	Scalar
Public Types inherited from NumericalBase< Derived >
typedef traits< Derived >::Scalar	Scalar

Public Member Functions
template<int Options, template< typename, int > class JointCollectionTpl>
void	calc (const ModelTpl< Scalar, Options, JointCollectionTpl > &model, const DataTpl< Scalar, Options, JointCollectionTpl > &data, ConstraintData &cdata) const
	Evaluate the constraint values at the current state given by data and store the results in cdata.
template<typename NewScalar>
CastType< NewScalar, Derived >::type	cast () const
ConstraintData	createData () const
Derived &	derived ()
const Derived &	derived () const
template<typename JacobianMatrix, int Options, template< typename, int > class JointCollectionTpl>
void	jacobian (const ModelTpl< Scalar, Options, JointCollectionTpl > &model, const DataTpl< Scalar, Options, JointCollectionTpl > &data, ConstraintData &cdata, const Eigen::MatrixBase< JacobianMatrix > &jacobian_matrix) const
template<typename OtherDerived>
ConstraintModelBase &	operator= (const ConstraintModelBase< OtherDerived > &other)
template<typename OtherDerived>
bool	operator== (const ConstraintModelBase< OtherDerived > &other) const

Public Attributes
IndexVector	colwise_span_indexes
	Indexes of the columns spanned by the constraints.
BooleanVector	colwise_sparsity
	Sparsity pattern associated to the constraint;.
std::string	name
	Name of the constraint.

Protected Member Functions
	ConstraintModelBase ()
	Default constructor.
template<int Options, template< typename, int > class JointCollectionTpl>
	ConstraintModelBase (const ModelTpl< Scalar, Options, JointCollectionTpl > &model)
ConstraintModelBase &	base ()
const ConstraintModelBase &	base () const

Detailed Description

template<class Derived>
struct pinocchio::ConstraintModelBase< Derived >

Definition at line 15 of file constraint-model-base.hpp.

Member Typedef Documentation

◆ BooleanVector

template<class Derived>

typedef Eigen::Matrix<bool, Eigen::Dynamic, 1, Options> BooleanVector

Definition at line 24 of file constraint-model-base.hpp.

◆ ConstraintData

template<class Derived>

typedef traits<Derived>::ConstraintData ConstraintData

Definition at line 22 of file constraint-model-base.hpp.

◆ IndexVector

template<class Derived>

typedef std::vector<Eigen::DenseIndex> IndexVector

Definition at line 26 of file constraint-model-base.hpp.

◆ Scalar

template<class Derived>

typedef traits<Derived>::Scalar Scalar

Definition at line 17 of file constraint-model-base.hpp.

Member Enumeration Documentation

◆ anonymous enum

template<class Derived>

anonymous enum

Definition at line 18 of file constraint-model-base.hpp.

Constructor & Destructor Documentation

◆ ConstraintModelBase() [1/2]

template<class Derived>

template<int Options, template< typename, int > class JointCollectionTpl>

ConstraintModelBase ( const ModelTpl< Scalar, Options, JointCollectionTpl > & model )

inlineprotected

Definition at line 99 of file constraint-model-base.hpp.

◆ ConstraintModelBase() [2/2]

template<class Derived>

ConstraintModelBase ( )

inlineprotected

Default constructor.

Definition at line 107 of file constraint-model-base.hpp.

Member Function Documentation

◆ base() [1/2]

template<class Derived>

ConstraintModelBase & base ( )

inlineprotected

Definition at line 111 of file constraint-model-base.hpp.

◆ base() [2/2]

template<class Derived>

const ConstraintModelBase & base ( ) const

inlineprotected

Definition at line 115 of file constraint-model-base.hpp.

◆ calc()

template<class Derived>

template<int Options, template< typename, int > class JointCollectionTpl>

void calc	(	const ModelTpl< Scalar, Options, JointCollectionTpl > &	model,
		const DataTpl< Scalar, Options, JointCollectionTpl > &	data,
		ConstraintData &	cdata ) const

inline

Evaluate the constraint values at the current state given by data and store the results in cdata.

Definition at line 46 of file constraint-model-base.hpp.

◆ cast()

template<class Derived>

template<typename NewScalar>

CastType< NewScalar, Derived >::type cast ( ) const

inline

Definition at line 38 of file constraint-model-base.hpp.

◆ createData()

template<class Derived>

ConstraintData createData ( ) const

inline

Definition at line 92 of file constraint-model-base.hpp.

◆ derived() [1/2]

template<class Derived>

Derived & derived ( )

inline

Definition at line 28 of file constraint-model-base.hpp.

◆ derived() [2/2]

template<class Derived>

const Derived & derived ( ) const

inline

Definition at line 32 of file constraint-model-base.hpp.

◆ jacobian()

template<class Derived>

template<typename JacobianMatrix, int Options, template< typename, int > class JointCollectionTpl>

void jacobian	(	const ModelTpl< Scalar, Options, JointCollectionTpl > &	model,
		const DataTpl< Scalar, Options, JointCollectionTpl > &	data,
		ConstraintData &	cdata,
		const Eigen::MatrixBase< JacobianMatrix > &	jacobian_matrix ) const

inline

Definition at line 55 of file constraint-model-base.hpp.

◆ operator=()

template<class Derived>

template<typename OtherDerived>

ConstraintModelBase & operator= ( const ConstraintModelBase< OtherDerived > & other )

inline

Definition at line 83 of file constraint-model-base.hpp.

◆ operator==()

template<class Derived>

template<typename OtherDerived>

bool operator== ( const ConstraintModelBase< OtherDerived > & other ) const

inline

Definition at line 76 of file constraint-model-base.hpp.

Member Data Documentation

◆ colwise_span_indexes

template<class Derived>

IndexVector colwise_span_indexes

Indexes of the columns spanned by the constraints.

Definition at line 73 of file constraint-model-base.hpp.

◆ colwise_sparsity

template<class Derived>

BooleanVector colwise_sparsity

Sparsity pattern associated to the constraint;.

Definition at line 70 of file constraint-model-base.hpp.

◆ name

template<class Derived>

std::string name

Name of the constraint.

Definition at line 67 of file constraint-model-base.hpp.

The documentation for this struct was generated from the following file:

include/pinocchio/algorithm/constraints/constraint-model-base.hpp
